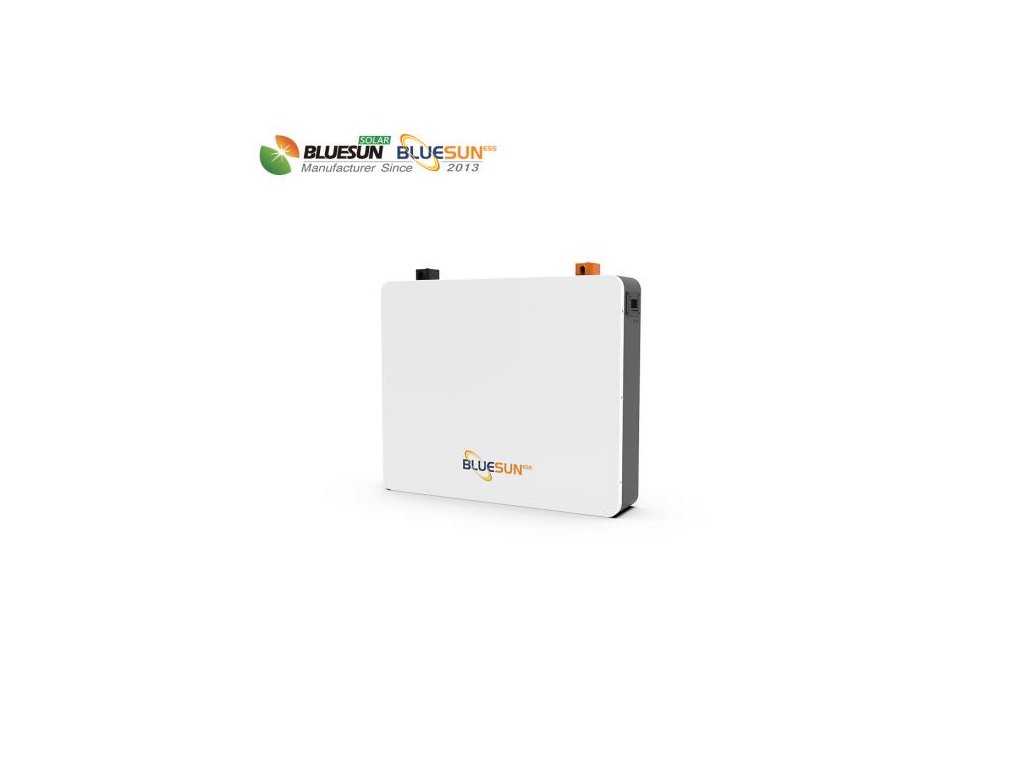

Bluesun BSM48200W LiFePO4 Battery LV 51.2V 200Ah – 10.2 kWh

Equipped with an advanced Battery Management System (BMS), it offers comprehensive protection against overcharging, overheating, short circuits, and overvoltage. Its compact, wall-mountable design and long cycle life make it ideal for off-grid or hybrid applications.

Key Features:

• Capacity: 200Ah

• Voltage: 51.2V

• Total Energy: 10.24 kWh

• Usable Energy: approx. 90–95% of nominal

• Cell Type: LiFePO4 – safe, stable, and environmentally friendly

• Cycle Life: >6000 cycles at 80% DoD

• Design Life: Over 10 years

• Communication Interfaces: CAN / RS485 / RS232

• Operating Temperature Range:

• Charging: 0 °C ~ +50 °C

• Discharging: -10 °C ~ +50 °C

• Protection Class: IP65 – suitable for outdoor use

• Mounting: Wall-mounted

• Certifications: CE, IEC, UN38.3, MSDS

Dimensions and Weight:

• Dimensions: approx. 598 × 650 × 160 mm

• Weight: approx. 78 kg

Ideal For:

• Residential solar power systems

• Backup power (UPS)

• Off-grid and hybrid energy storage

• Commercial and industrial solar setups

The Bluesun BSM48200W 200Ah (10.2 kWh) battery is a smart and sustainable solution for energy independence, offering safe and efficient solar energy storage with a long lifespan.
